About 2007, a friend gave me a box of old kits, one of which was
this Pratt&Whitney Wasp Junior engine by Williams Bros. It
looked like it might be a challenge to build but by carefully
following the instruction book, it proved to be a fun project. |
 |
 |
 |
|
|

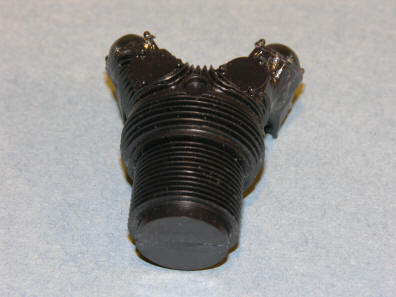

Each cylinder was a small kit in itself with two halves of the
barrels and rocker heads |

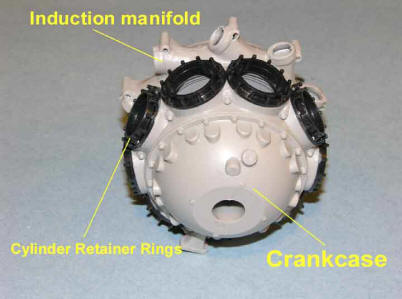

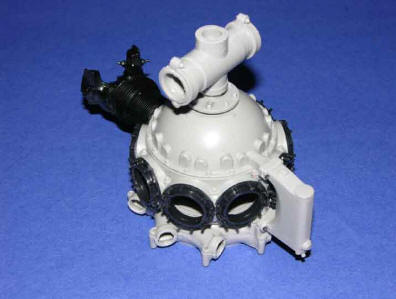

The crankcase, gear box case and induction manifold along with the
cylinder retainer rigs |

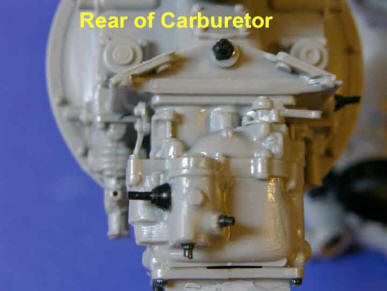

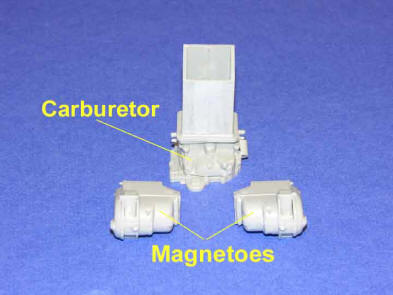

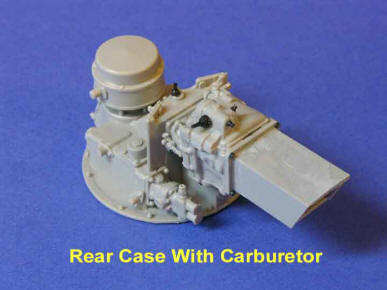

The carburetor and magnetos built up next |
|
 |
 |
 |
|
|

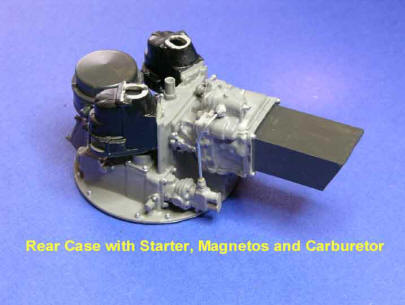

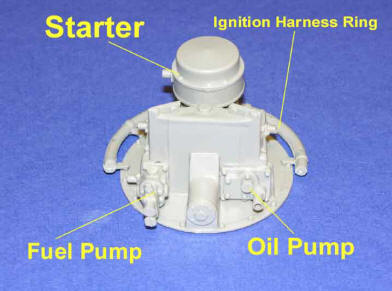

The rear case with all of the accessories came next |

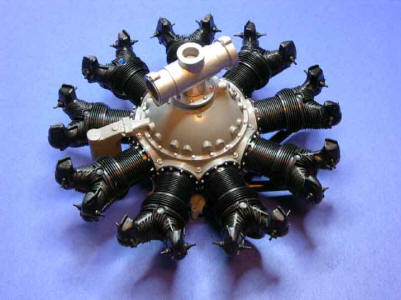

Test fitting the propeller hub and cylinders |
The rear case assembled and ready for paint and small bits |
|
 |
 |
 |
|
|
Some of the small black plumbing pieces added |

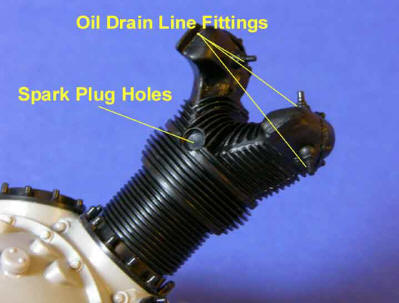

Small bits added to the cylinders |

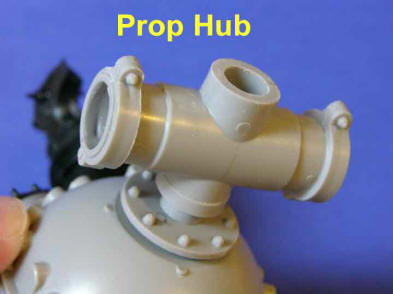

Prop hub glued in place. |
|
 |
 |
 |
|
|

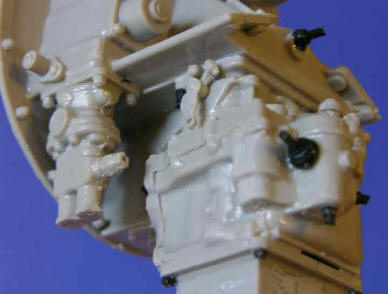

Linkages added to the carburetor |

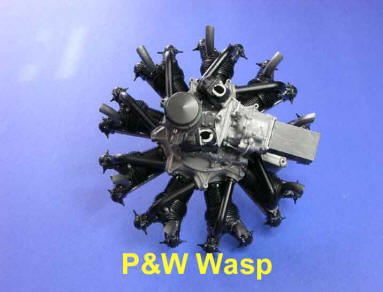

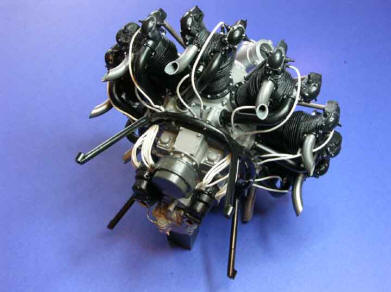

All 9 cylinders installed |
More wee bits |
|
 |
 |
 |
|
|

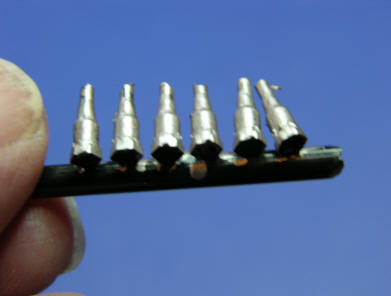

Spark plugs..all 18 ..painted |
Rear case with all the bits'n pieces painted |

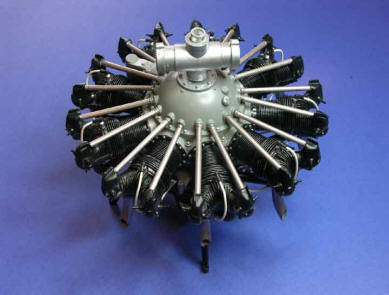

Then glued in place along with the induction tubes |
|
 |
 |
 |
|
|
Push rod tubes added and the ignition wiring in place |

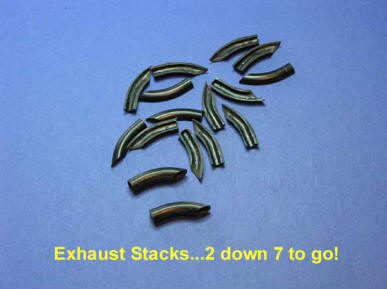

The wiring is #32 electrical wirie, exhaust pipes added and painted
with Model Master Burnt Metal |

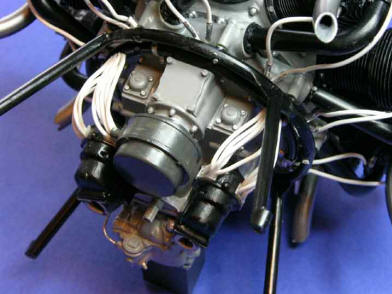

Each wire is of a different length, plug boots added to the wire and
connected to the plugs |
|
 |
 |
 |
|
|

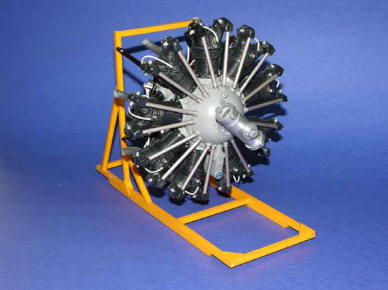

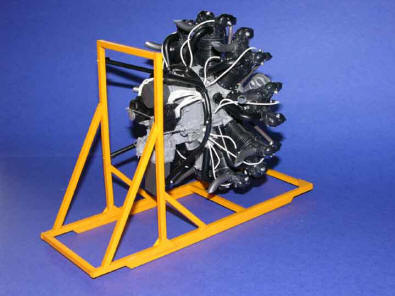

Scratch-built stand from square section Evergreen plastic tubing |
I have no idea how many pieces in this kit but it is finished |

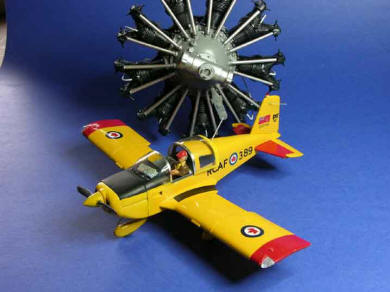

Comparing the engine to my 1:32 scale Grumman-American AA1A |
|
